Best quality LED placement machine High-speed with flexible light strips
Feature description
✹Suitable for mounting on 0.6, 0.9, 1.2 meters of hard light strips and 0.5, 1 meter of soft light strips, 2-4 kinds of materials can be mounted at the same time, and the mounting speed is not affected by the ratio of lamp beads, resistors and other materials;
✹The placement head is divided into left and right groups, each with 17 nozzles; with its own correction component system, it can mount RGB lamp beads, and the production capacity can reach 150,000 CPH.
Machine Parameter
| Dimension | 2700*2450*1530mm |
| Total weight | 1400kg |
| PCB | size | Max:1200*330mm Min:50*50mm |
| Thickness | 0.1-5mm |
| Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing,separate picking and separate placing. |
| O.S. | System | Windows 7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input device | Keyboard,mouse |
| Vision system | camera | 5 PCS digital camera |
| Mounting precision | 0.02mm |
| Mounting element height | ≤5mm |
| Mounting speed | 150000-170000 CPH |
| Components | LED3014/3020/3528/5050 and capacitor,resistors,bridge rectifiers,etc. |
| Components space | 0.2mm |
| Feeder station | 68 PCS |
| Nozzles | 34 PCS |
| Power | 220AC 50HZ |
| Power consumption | 5KW |
| Operating environment | 23℃±3℃ |
| Transmission speed | Max length:1200mm |
| Transmission mode | single |
| Position mode | Online drive |
| Gas consumption | 0.5mpa |
| Electric control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| XYZ axis drive way | High-end magnetic linear motor and servo motor |
| Feeding way | Electric feeder with double motor |
Brand introduction
Shenzhen Yitong Automation Equipment Co., Ltd. has always been committed to the development and production of LED high-speed placement machines, LED display placement machines, multi-function placement machines, and automatic placement machines.

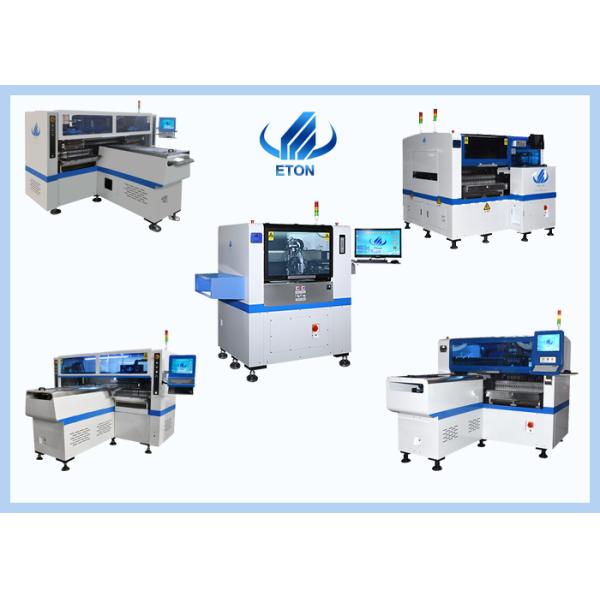

There are many types of our machines
Machine Details
Mainly for half-meter and 1-meter flexible light strips, tubes, panel lights can also be mounted.
| Automatic or manual | Automatic | | model | Single module |
| Feeder station | 68 PCS | | Precision | 0.02mm |
| Speed | 150000 CPH | | Feature of camera | Vision alignment,MARK correction |
Company Profile
ETON is a leading manufacturer of automatic highspeed pick and place machine,which has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents, and 12 software copyrights.,and rate as “Shenzhen high-tech enterprise”,”China high-tech enterprise”,Shenzhen TOP brand”,”2015 LED Technology Innovation Award”,”The 4th China LED first Innovation aware”,”Industry Special Contribution Award”.
About our services
♔Professional solutions:provide professional SMT full line solution
♔Warranty:1 year warranty factory service
♔Free Installation:one-site free installation to ensure smooth production
♔Free technical training:professional training of operating and maintenance
♔Technical support:24 house online support
♔Software Upgrade:offer free software upgrade whole lifetime.
Package and delivery
❆Standard export vacuum waterproof package
❆Strong wooden package for ensure safely delivery of heavy and large equipment
❆Delivery:By air,sea and railway.
Description of SMT
- SMT is currently the most popular technology and process in the electronic assembly industry. It is a method of mounting leadless or segment-lead surface assembly components on the surface of a PCB or other substrates through reflow soldering. Or dip soldering and other methods to solder and assemble the circuit assembly technology.
- Application of SMT: PCBA production of various lighting fixtures, portable and popular notebook computers, mobile phones, and dots all benefit from this.
